Upward Oxygen Free Copper Strip Casting Machine Continuous Caster Unit

Product Categories

JIAXING JICHENG MACHINERY CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : E&V

Model Number : SYJ06250*10-I3

Place of Origin : China

MOQ : 1set

Supply Ability : 1SET PER MONTH

Delivery Time : 60 DAYS

Packaging Details : standrad packing

Yearly Capacity : 3000mt

product : copper strip

working hour : 7920h

strand NO. : 6

color : optional

function : producing copper strip

Contact Now

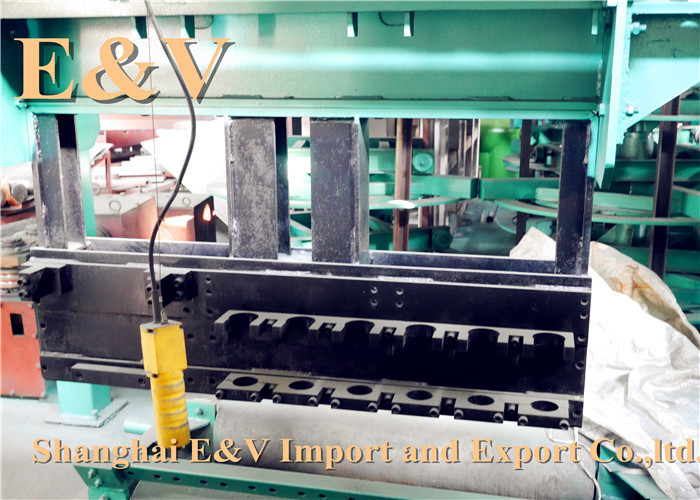

Upward Oxygen Free Copper Strip Casting Machine Continuous Caster Unit

Main Technology Parameter Of Copper Strip Up-casting Machine

No.	Item	Parameter	Remark
1	Model	TPSYJ250106-I3	Adjustable as per customer’s requirements
2	Yearly capacity	3000mt
3	Total power	250KW
4	Furnace structure	three- body furnace(2melting furnace,1 holding furnace)	Adjustable as per customer’s requirements
5	Casting strands	6	Adjustable as per customer’s requirements
6	Copper strip size	250*10mm	Adjustable as per customer’s requirements
7	Casting speed	0-150mm/min
8	annual working time	7920h
9	Liquid tracking precision	±2mm
10	Take-up coil standard	600kg/coil
11	Copper melting velocity	380kg/h	Adjustable as per customer’s requirements
12	Copper melting power consumption	‹350kwh/ton
13	Take-up form	Coiling
14	Feeding mode	whole piece of electrolytic copper cathode fed by electric hoist
15	Driven mode	3pc copper strip:1pc 4.4kwservo motor
16	Rod clamping method	Manual clamping

Upward Oxygen Free Copper Strip Casting Machine Continuous Caster Unit
